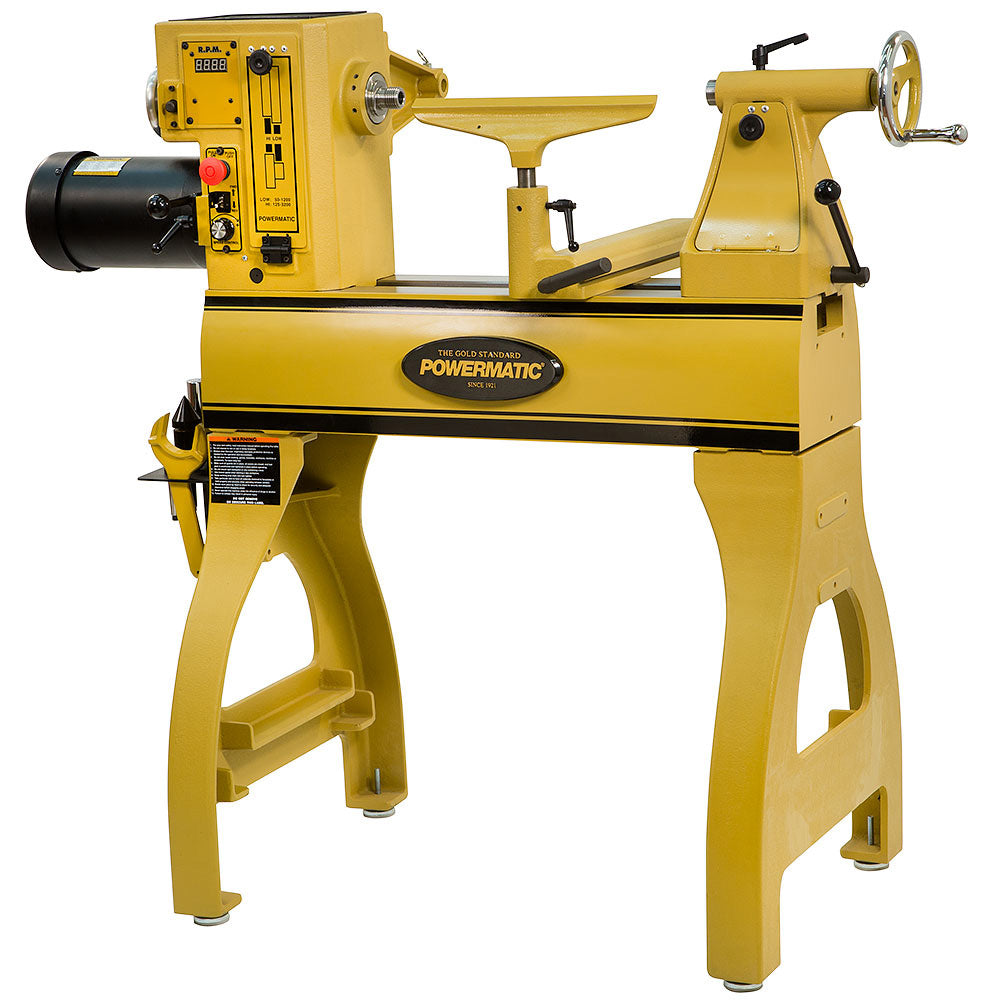

Powermatic PM2020 Lathe
Part# 1055080001 | Mfg Part# PM2020Powermatic PM2020
Details
Special Notes:
- Call for our best price on a Powermatic PM2020 Lathe!

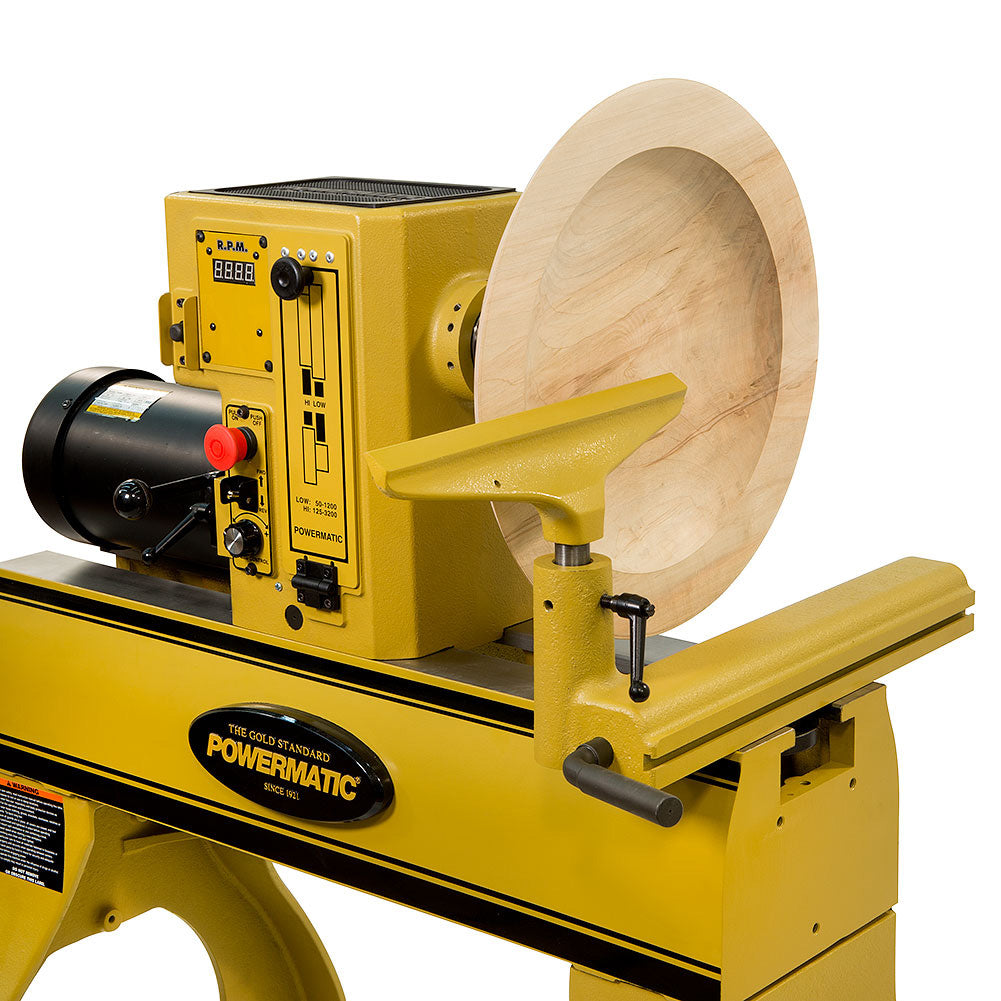

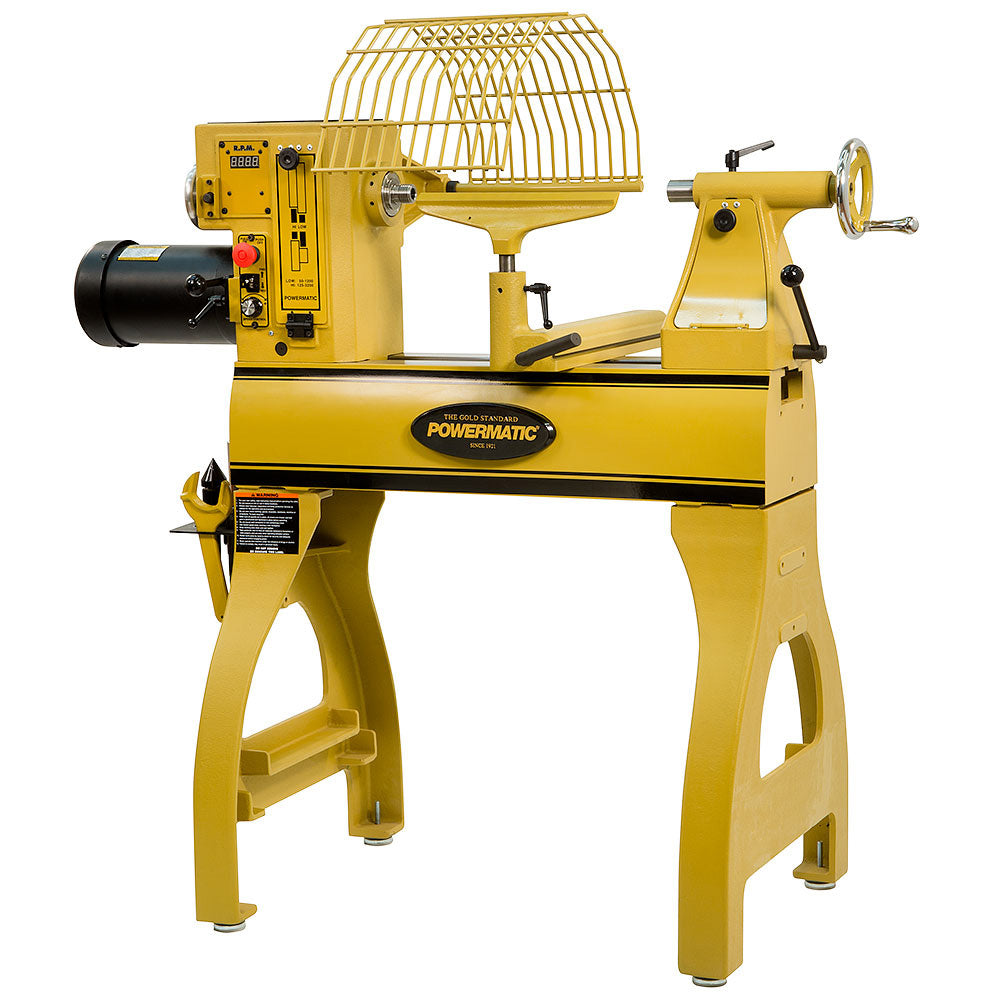

- The Powermatic PM2020 wood lathe is a full-featured shortbed version of the popular Model 3520B. Designed specifically for woodturners with limited floor space and/or those primarily interested in bowl turning, the Powermatic PM2020 has a 30% smaller footprint than the 3520B yet offers the same great features along with improved accessibility and the added convenience of a short bed.
- 20" Dia. capacity
- 20" Between centers

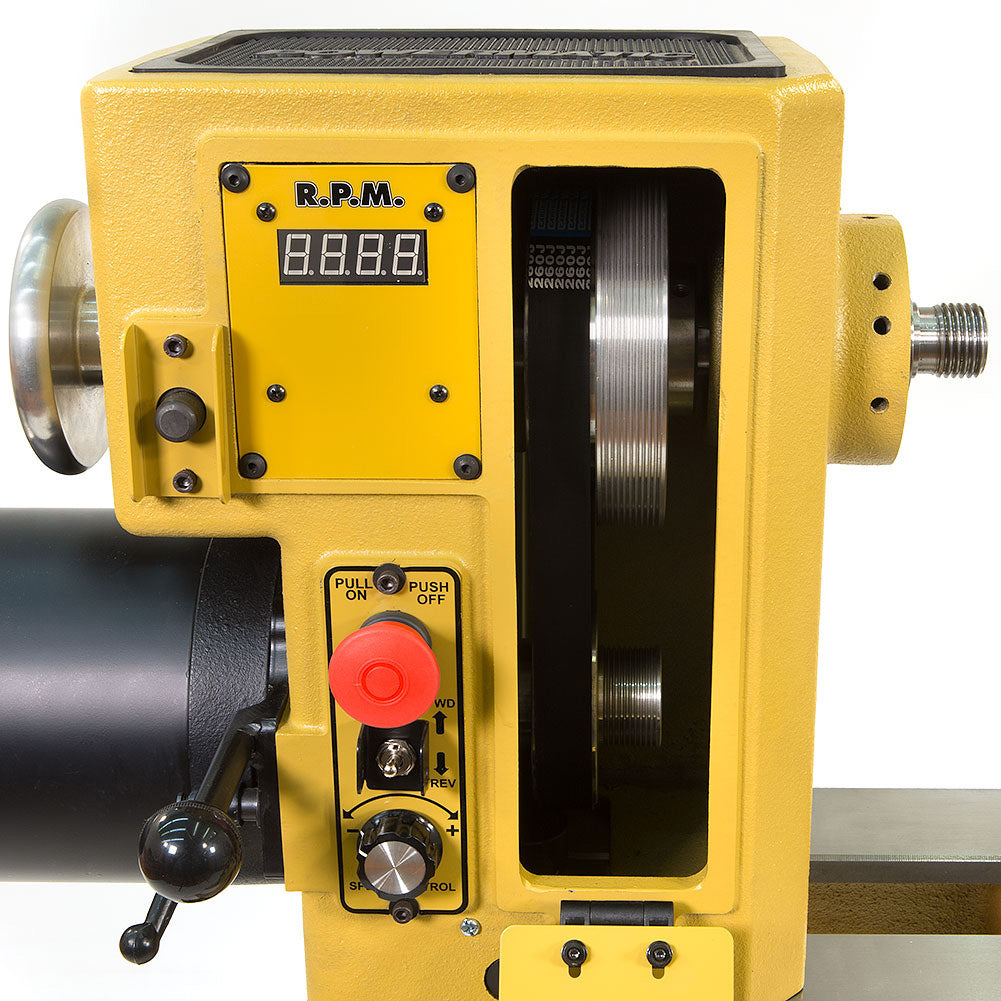

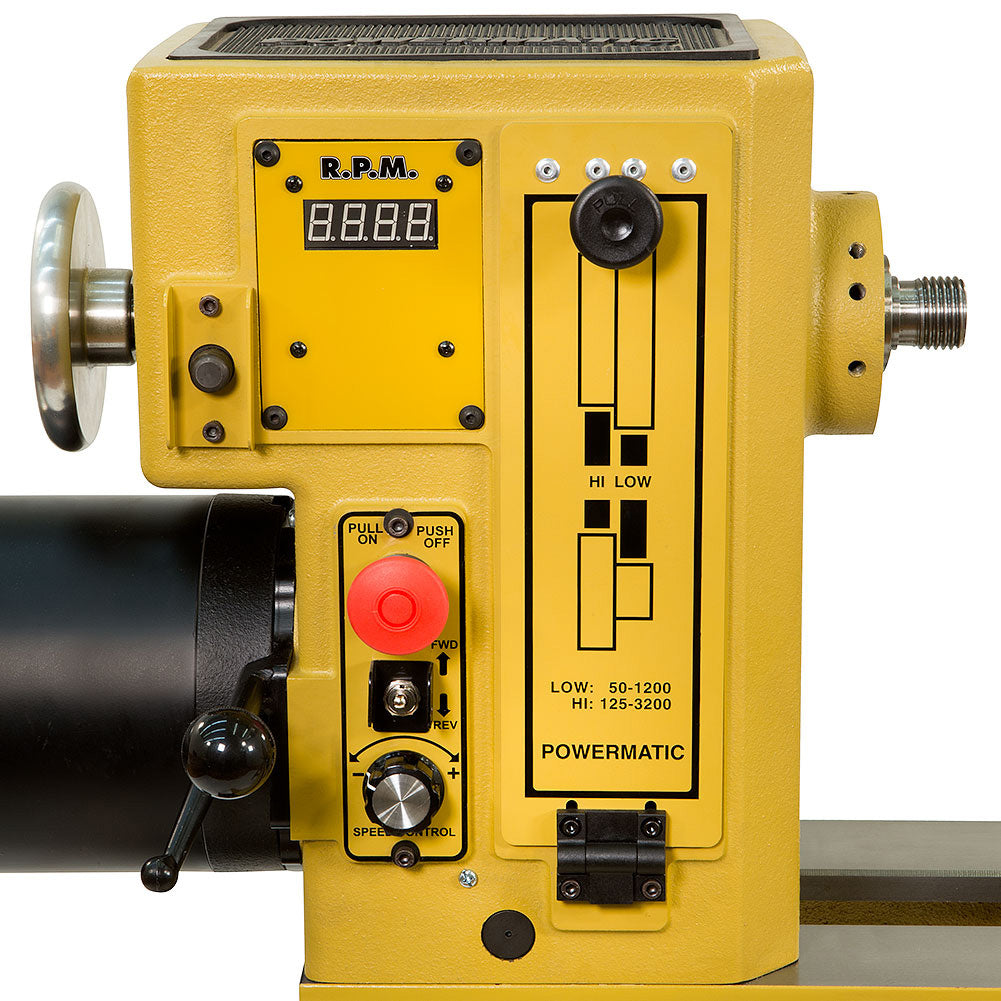

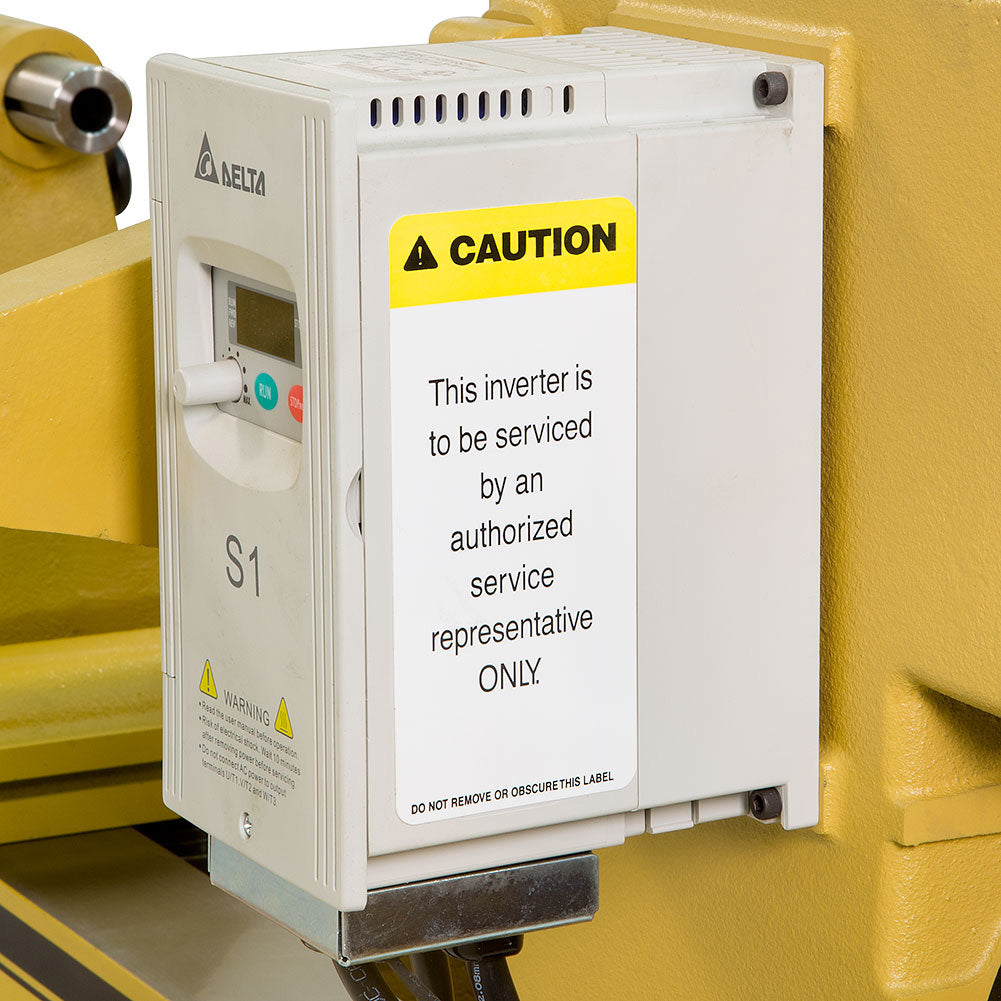

- Electronic variable speed with low and high speed ranges
- Digital RPM readout
- Solid cast iron construction
- Built in spindle indexing on the head stock

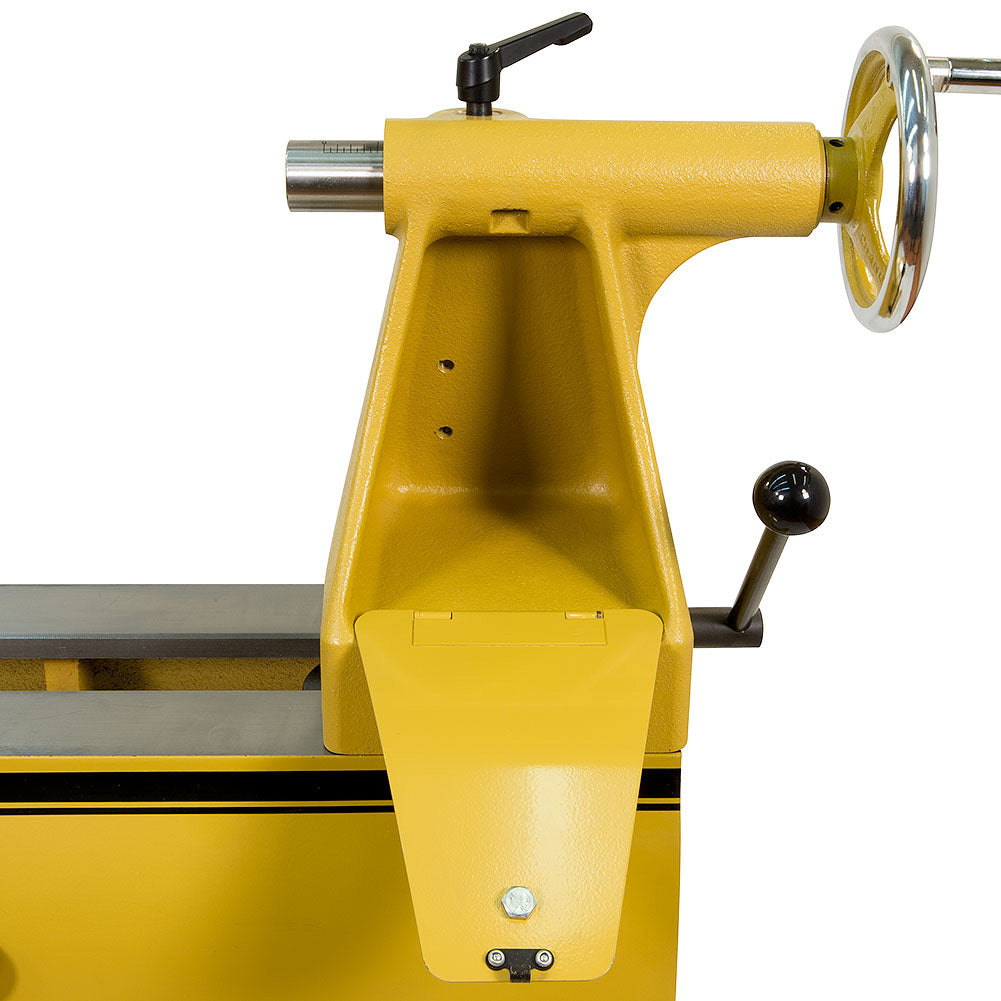

- Tailstock with internal storage
- Spindle lock
- Sliding headstock
- Chrome plated hand wheels

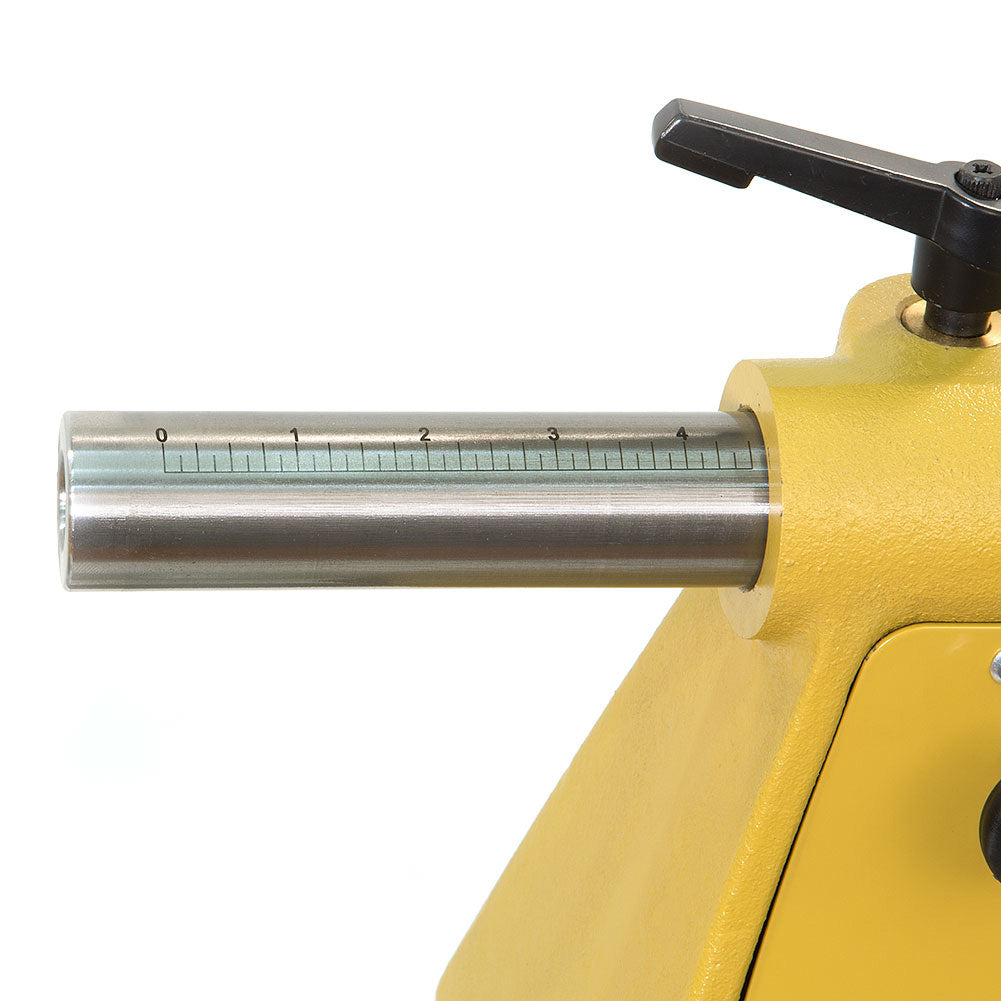

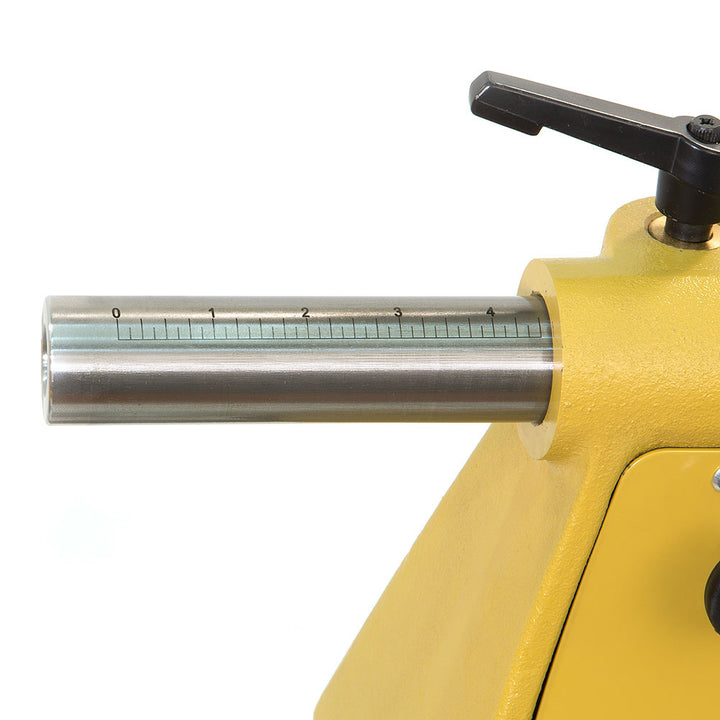

- Self ejecting laser-etched tailstock quill

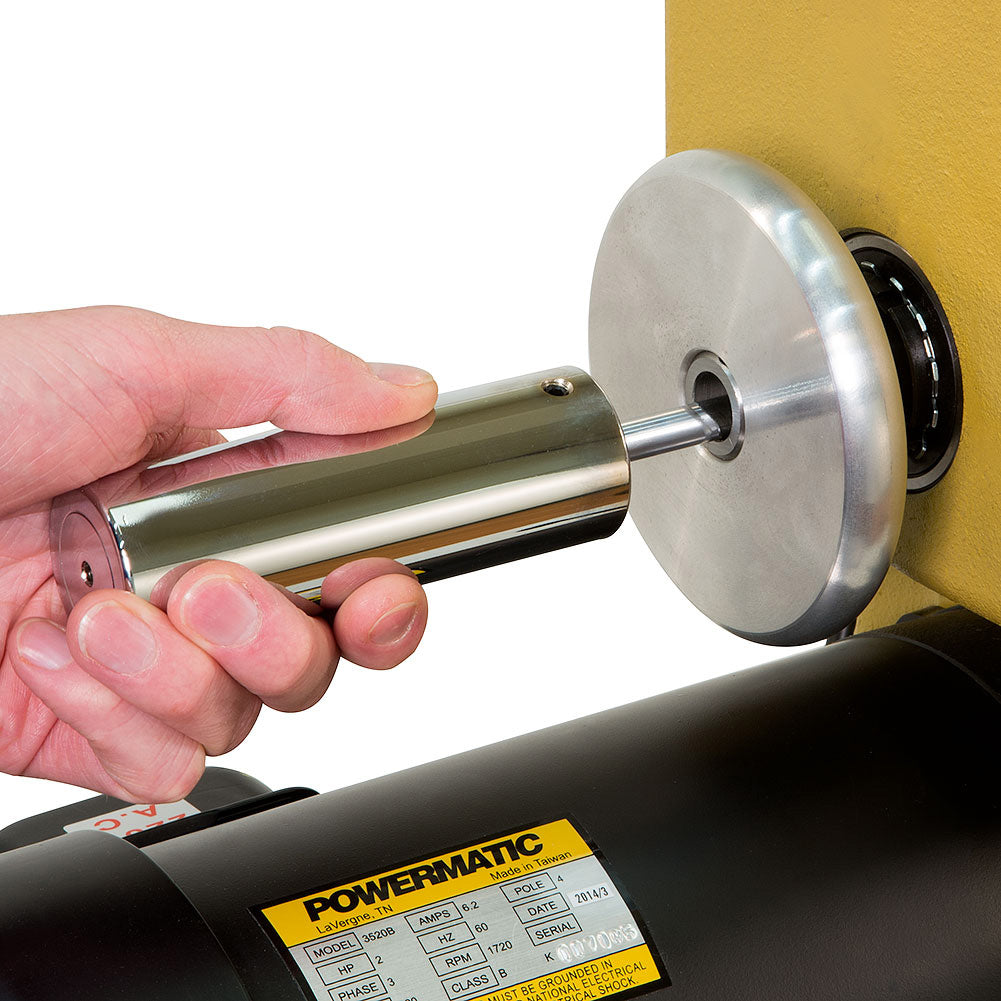

- Sliding hammer knockout rod with brass tip

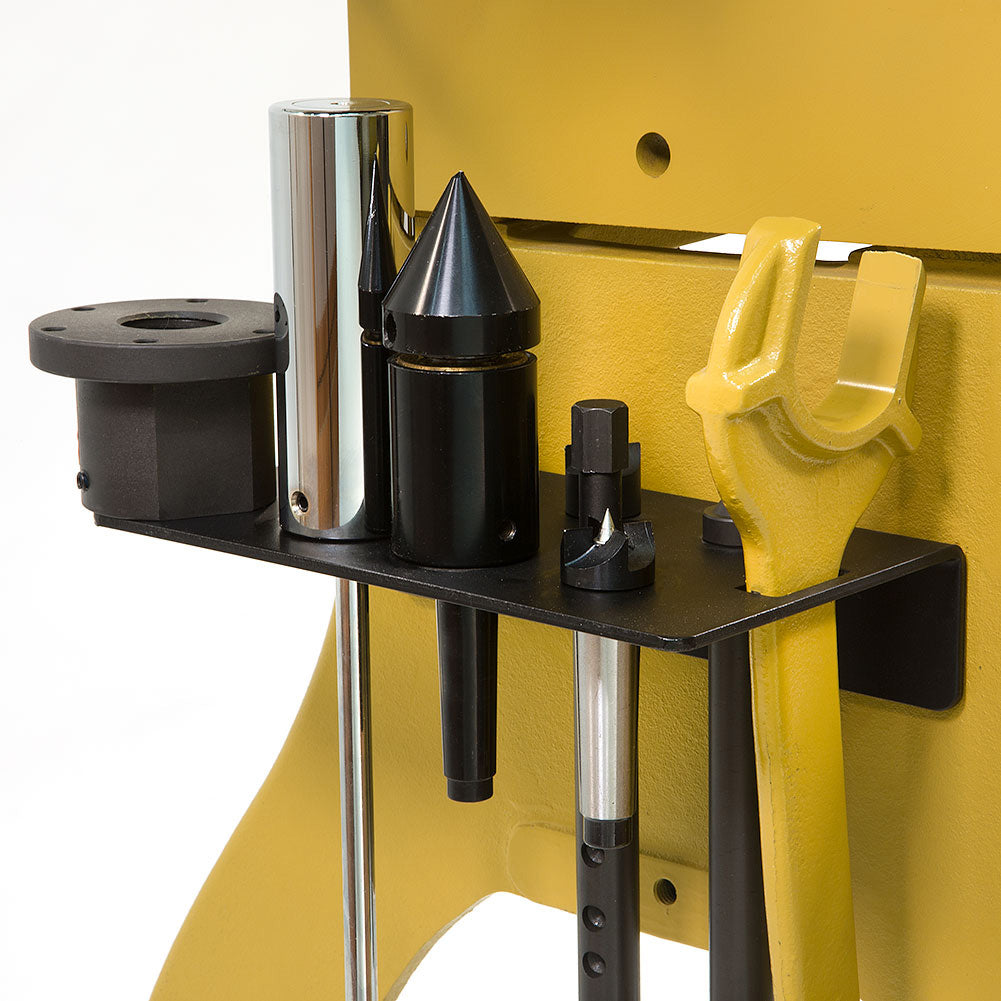

- Attached tool caddy and a metal shelf for tool storage
- Accessories fully interchangeable with 3520B
If you’ve always wanted a 3520B but just haven’t had the space, the Powermatic 2020 might just be the perfect fit for you!
Lathe Features:
Specifications:
Swing Over Bed: 20"
Swing Over Tool Rest Base: 17"
Distance Between Centers: 20"
Spindle Height: 44" from floor
Sliding Headstock Movement: Full length of bed
Spindle Taper: No. 2MT
Tailstock Quill Travel: 4-1/2"
Headstock Spindle Thread: 1-1/4" x 8TPI
Spindle Speeds: High range 125-3,200 rpm; Low range 50-1,200 rpm
Number of Indexing Positions: 48
Bed Construction: Cast Iron

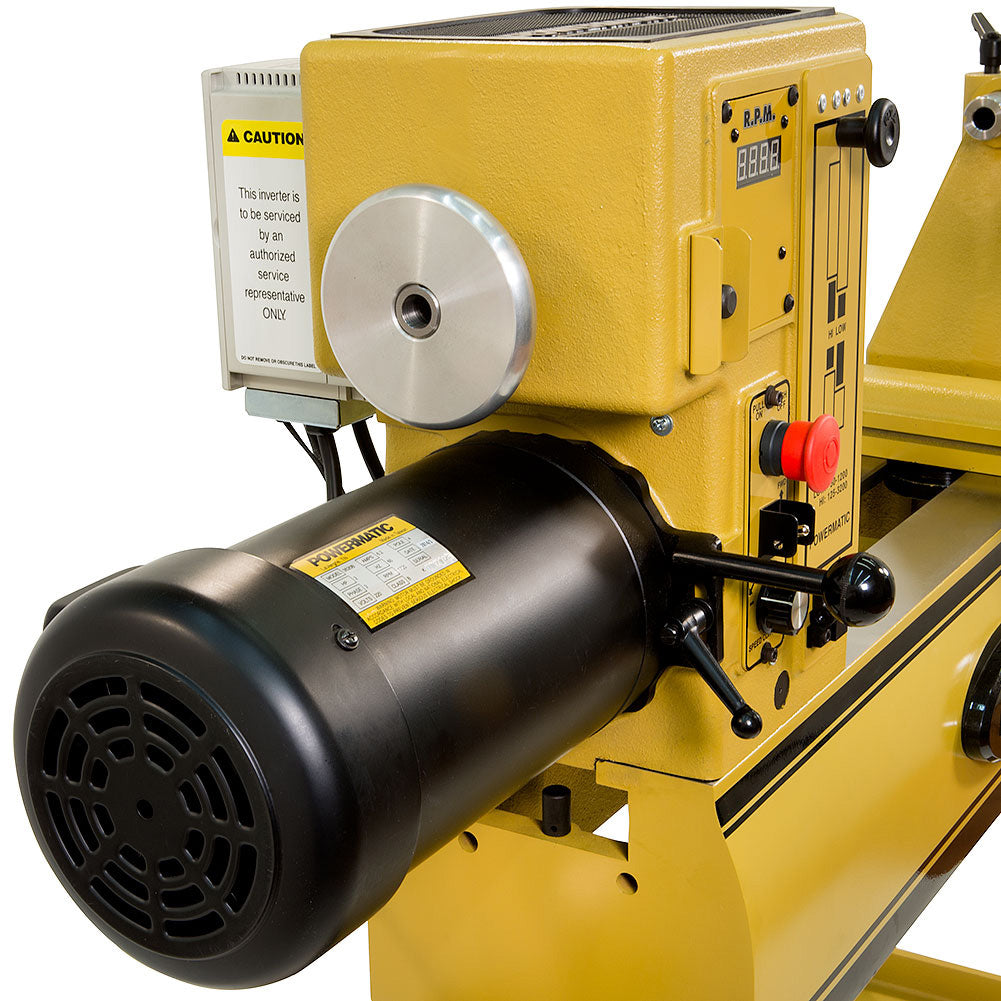

Motor: 2HP 1 phase
Motor Voltage: 220
Motor Current (Amps): 6.2
Recommended Circuit Size (Amps): 20

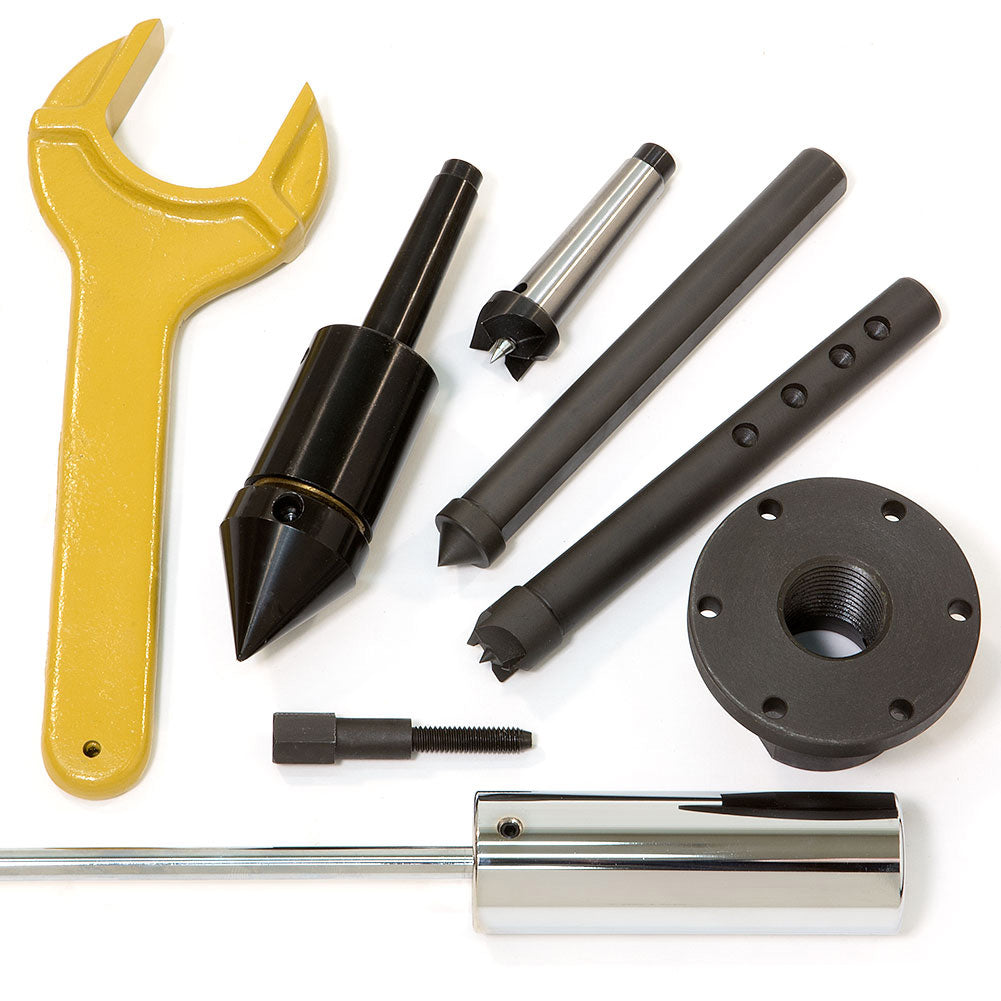

Standard Accessories:
3" Faceplate
Revolving Cone Center
4 Prong Drive Center
Faceplate Wrench

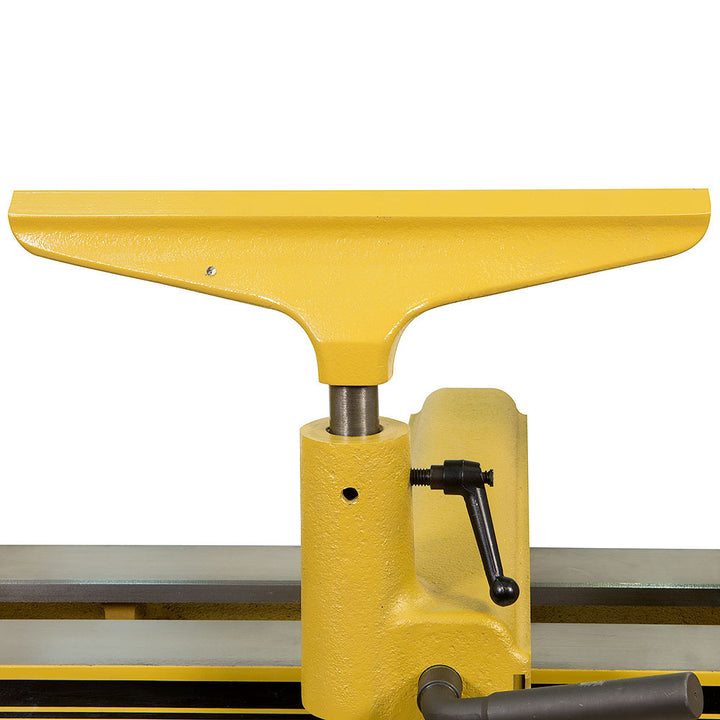

14" Tool Rest
Sliding Hammer Knockout Rod with Brass Tip
Call for the lowest prices anywhere on the Powermatic® 2020 Lathe and complete lathe packages
For additional information or to order please contact: Technical Support 1-800-551-8876
2 of 2 people found this review helpful.
PM 2020 lathe w/swing away and
TERRANCE in OR
Comments On Apr 30, 2019:I used the pm 2020 at the nutcracker class last October and purchased it in February.It replaces my Vega 2400 bowl lathe as it has so many features that are easier to use. I also purchased an aluminum carbide sharpening wheel with some of the one way varigrind parts, these are also excellent. Between the Nutcracker class, which I found to be just what I was looking for to learn some new techniques for building Nutcrackers, the lathe, swing away and sharpening items, I could not be happier with Craft supplies. Everyone I have dealt with has been perfect , from instructors to the people in the office to tech support.. I would include pictures of the last few Nutcrackers I have produced with this equipment if I could , as I am so pleased with how much my turning has improved with teaching and improved equipment.
Terry
Was this review helpful?
10 of 10 people found this review helpful.
I LOVE this lathe!
WARREN in CA
Comments On Oct 29, 2016:I purchased my Powermatic P2020 at the end of August 2016. It was a replacement for my first lathe, a Jet 1015VS. I wanted to be able to turn some bigger items than I was able to with my Jet. The Jet certainly performed well in the time that I had it.
I had taken a class at Craft Supplies and I guess I succumbed to turning with a larger lathe. I selected the P2020 because of it's smaller footprint for my shop/garage. As far as I know it is the only full-featured lathe that offers the smaller (20") footprint.
There is NOTHING about this lathe that I don't like. Even things as routine as drilling pen blanks is just better with this lathe. I have turned a few bowls, and intend on turning more. I have turned about a half a dozen pens and everything went just fine. Bigger doesn't translate into "too big" for small projects.
Fit and finish was just fine (other than a bit of cosmetic things when it was delivered). The delivery folks were just fine, putting the lathe down in the middle of my garage/shop. It took 3 adults to unpackaged and assemble it, but all was accomplished in an hour or so. I also bought the roller assembly "Lift, Lock, and Roll" and it works well, even though the lathe is 569 pounds and I am a mere 140.
I would not hesitate to recommend this lathe to someone who has a need to a full power, small footprint lathe.
